| type |

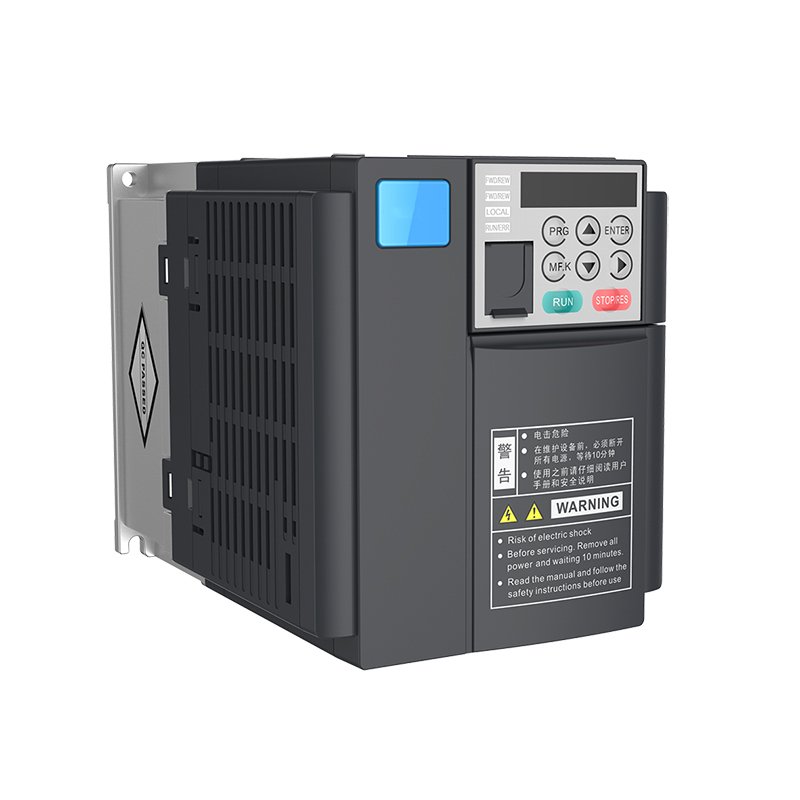

Inverter |
Material |
Metal |
| warranty |
3 Months |
machinery test report |
Provided |
| video outgoing-inspection |
Provided |
place of origin |
Zhejiang, China |
| brand name |
Mivectorele |
Grid voltage |
Three-phase 380-440VAC |
| Power range |
0.4~18.5kW |
Maximum frequency |
Vector control: 0-300Hz; V/F control: 0~500Hz |
| allowable fluctuation range |
-15%-+10% (323~484VAC) |
Speed range |
1:50 (W/F) 1:100 (SVC) |
| Speed fluctuation |
+0.5%(SVC) 1%(V/F) |
Overload capacity |
120% in 1 hour, 150% in 1 minute, 180% in 2 seconds |
| V/F curve |
Three types: linear;Nth power V/Fcurves(1.2, 1.4, 1.6, 1.8, 2) |
V/F separation |
Two types: full separation, partial separation |
