| Phase |
DC Meter |
Output Voltage |
DC 9V-60V |
| Accuracy Class |
Class 0.5 |
Max. Current |
100A |
| Rated Current |
75mV shunt input |
Measuring Energy Range |
0-999999.99kWh |
| Operating Temperature |
-25~60 °C |
Display Type |
LCD Display |
| Application |
Industrial, IOT, Telecommunication, Electric Power |
Feature |
Safety, Light Weight, Eco-Friendly, Durable, Time Display, Easy Installation |
| Place of Origin |
Zhejiang, China |

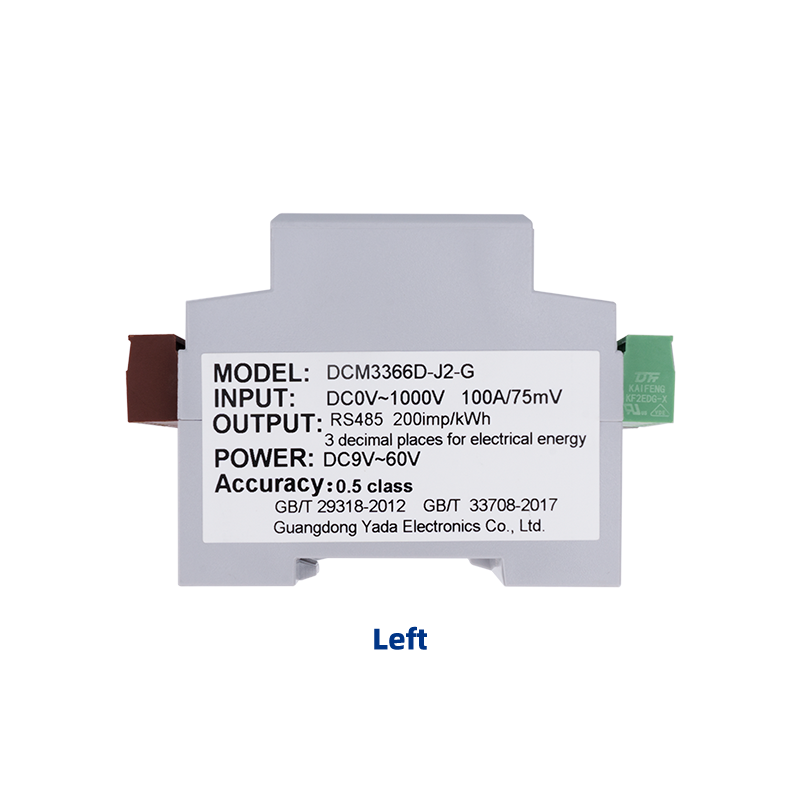

Model Number |
DCM3366D-J2-G |
| Brand Name |
Mivectorele |
Dimensions |
(90.0)mm*(95.5)mm*(63.5)mm |
| Product name |

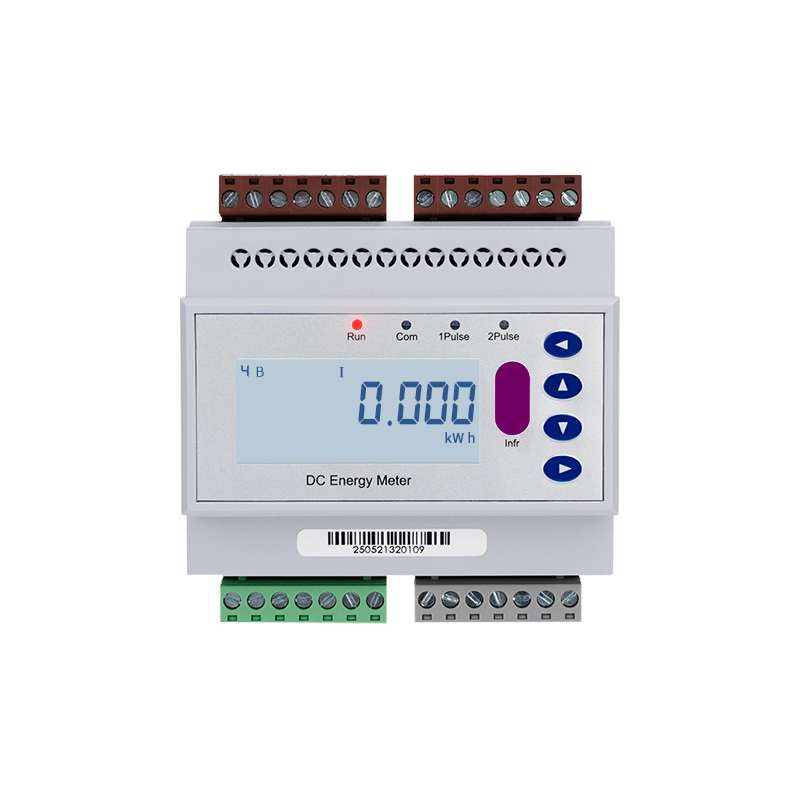

DC Electronic Meter for Dual Circuit EV Charger |
Communication |
RS485(Modbus-RTU), infrared communication |
| Installation |
35mm Din Rail |
Input |
DC1000V, 100A/ 75mV shunt input |
| Warranty |
24 Months |
Display |
LCD Backlight |
| Certificate |
CE, LVD, EMC, CQC, UL, UKCA, ISO45001, ISO14001 |
OEM |
Support |
