| Item | Parameter | Item | Parameter |
|---|---|---|---|
| Phase | Single Phase, Three Phase, single | Rated Current | 63 A, 100 A, 125 A, 63A 100A and 125a |
| Breaking Capacity | 10 kA | Number of Pole | 2 |
| Application | Industrial Power, ac system | Frame Current | 63 A, 100 A, 125 A |
| Type | PC, auto | Brand Name | Mivectorele |
| Model Number | PA-125a | Place of Origin | Zhejiang, China |

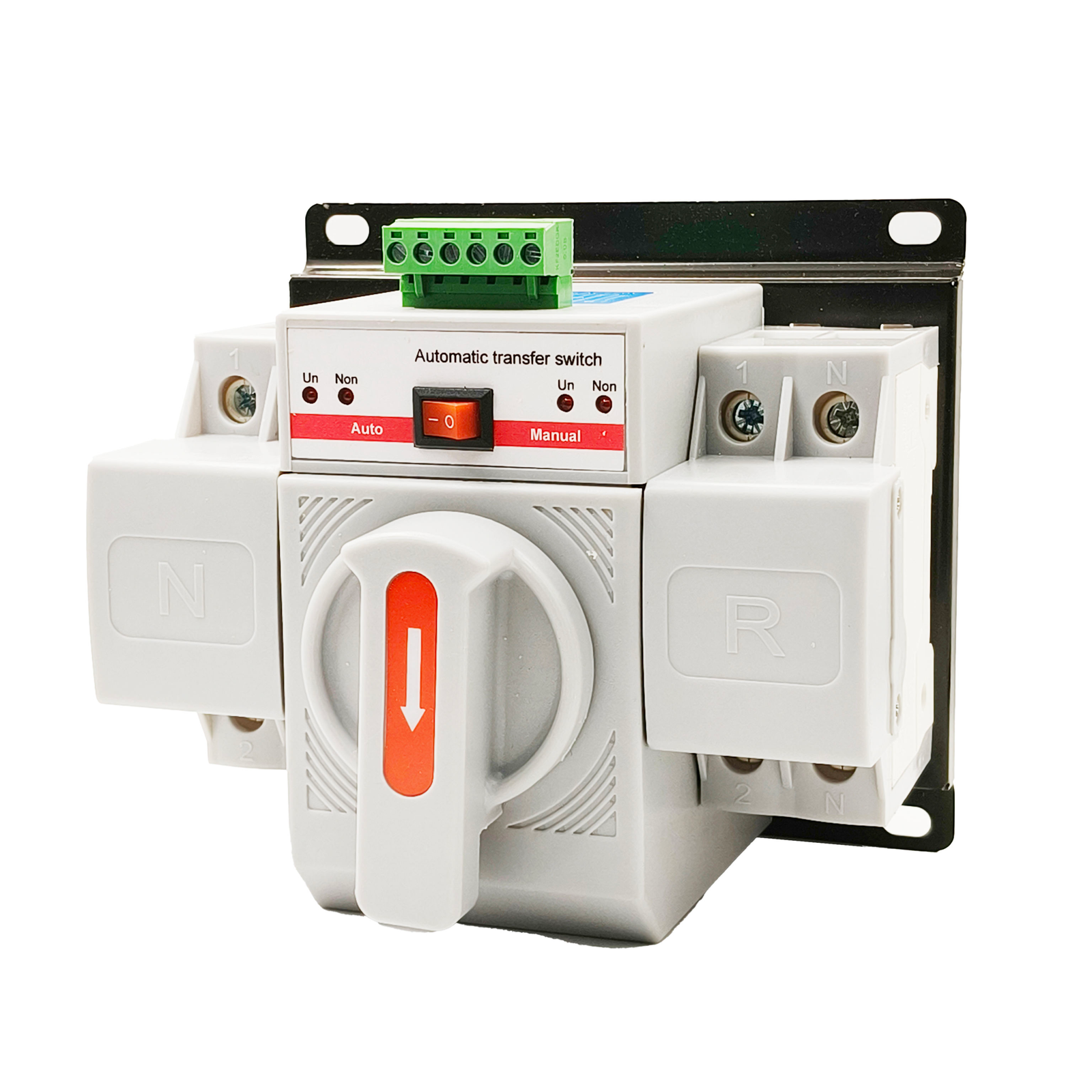

| Product name | Dual-Power Auto Transfer Switch | Poles | 2P/4P |
| Rated voltage | 230Vac | Rate Power | 50hz/60hz |
| Installation type | Din rail | Warranty | 1 year |
| Selling Units | Single item | Package size per batch | 10X10X10 cm |
|---|---|---|---|
| Gross weight per batch | 2.500 kg |
