| Attribute | Specification | Attribute | Specification |
|---|---|---|---|
| Phase | Single Phase | Accuracy Class | Class 0.5 |
| Max. Current | 9999 A (AC) | Rated Current | 5 A |
| Measuring Energy Range | 0-999999.9 kWh | Application | Electric Power, Household, Industrial, IOT |
| Feature | Safety | Brand Name | Mivectorele |
| Dimensions | Miniature | Model Number | ARD2F |
| Place of Origin | Zhejiang, China | Theory | Electromagnetic Relay |
| application | PROTECTIVE | Protect Feature | Sealed |

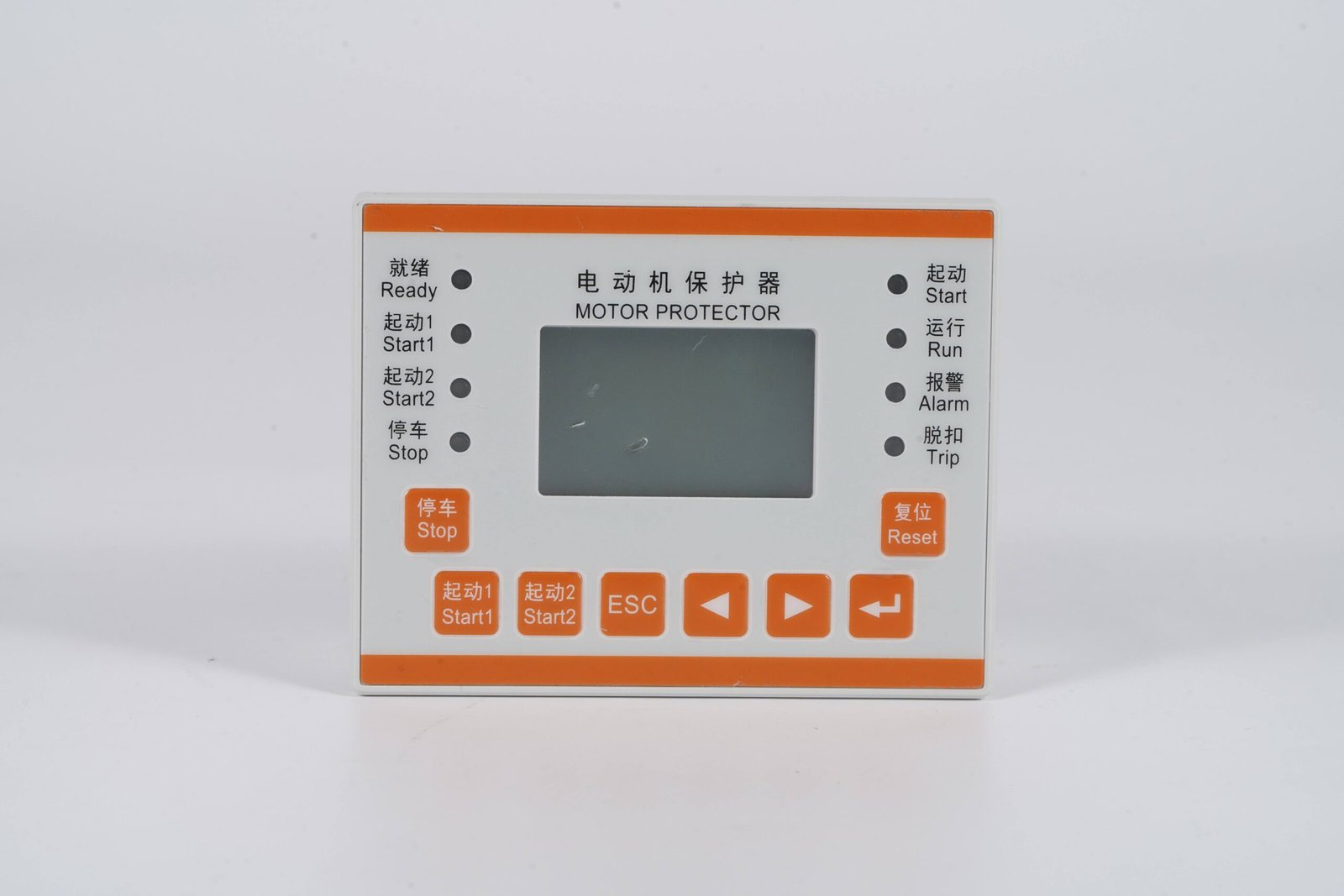

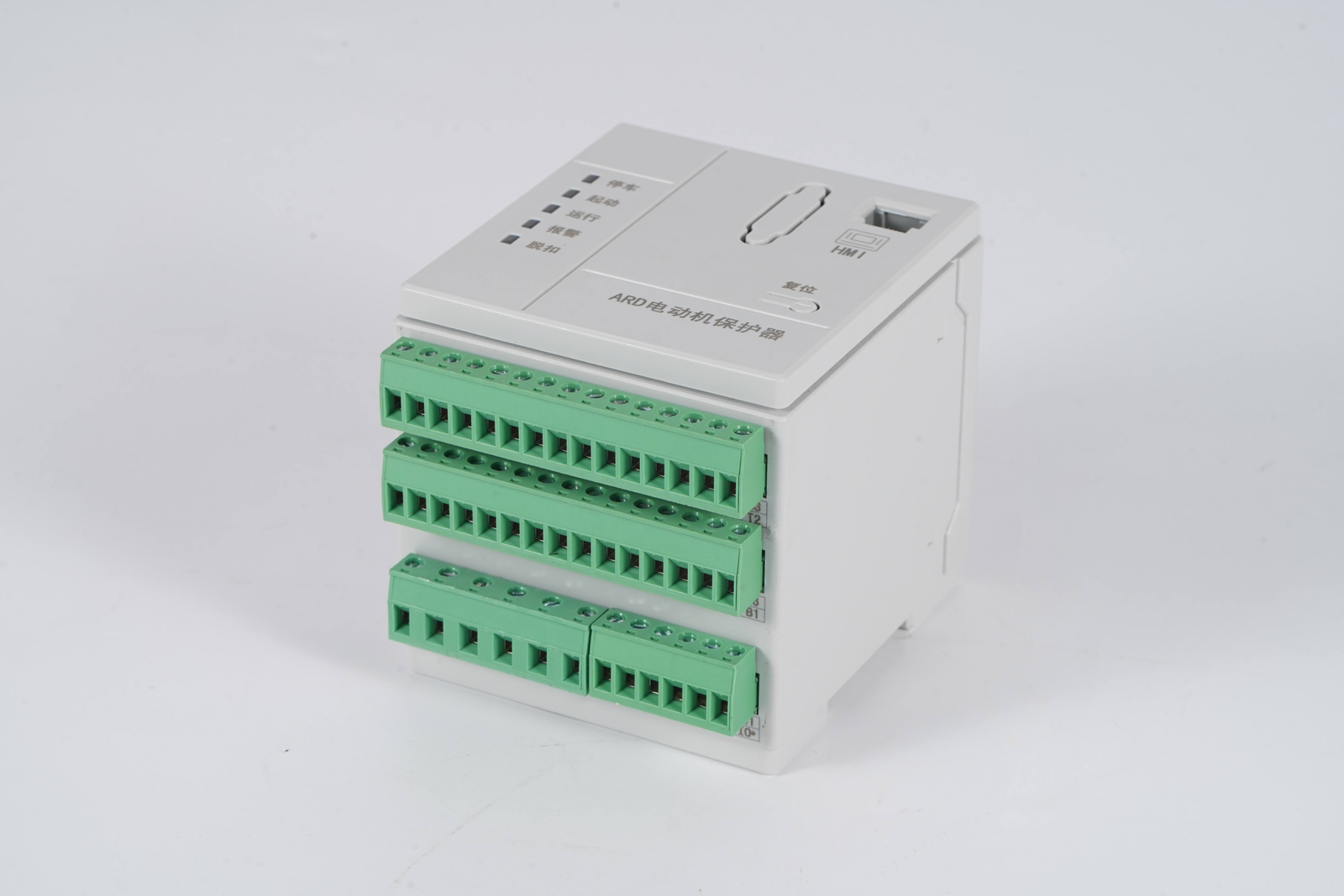

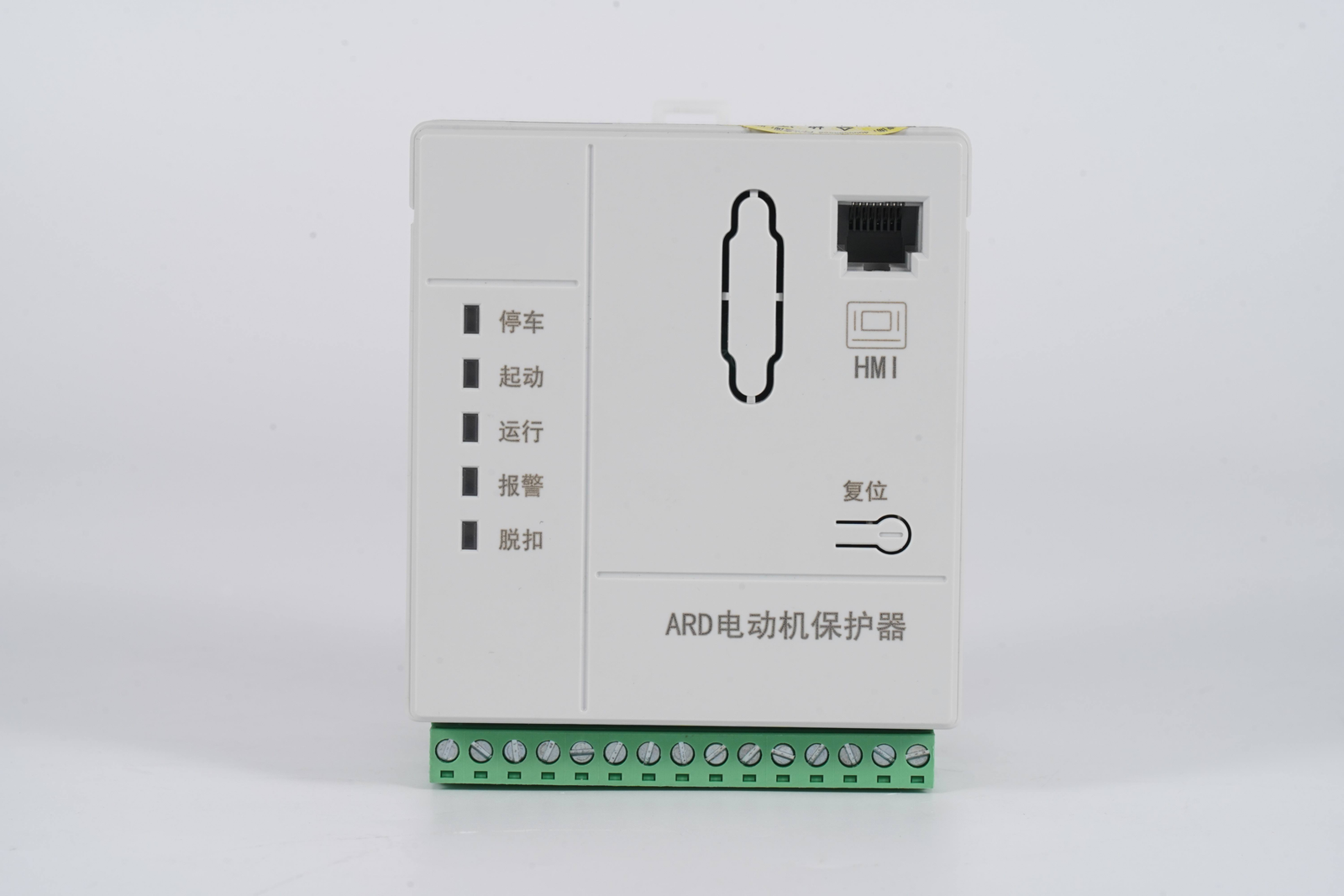

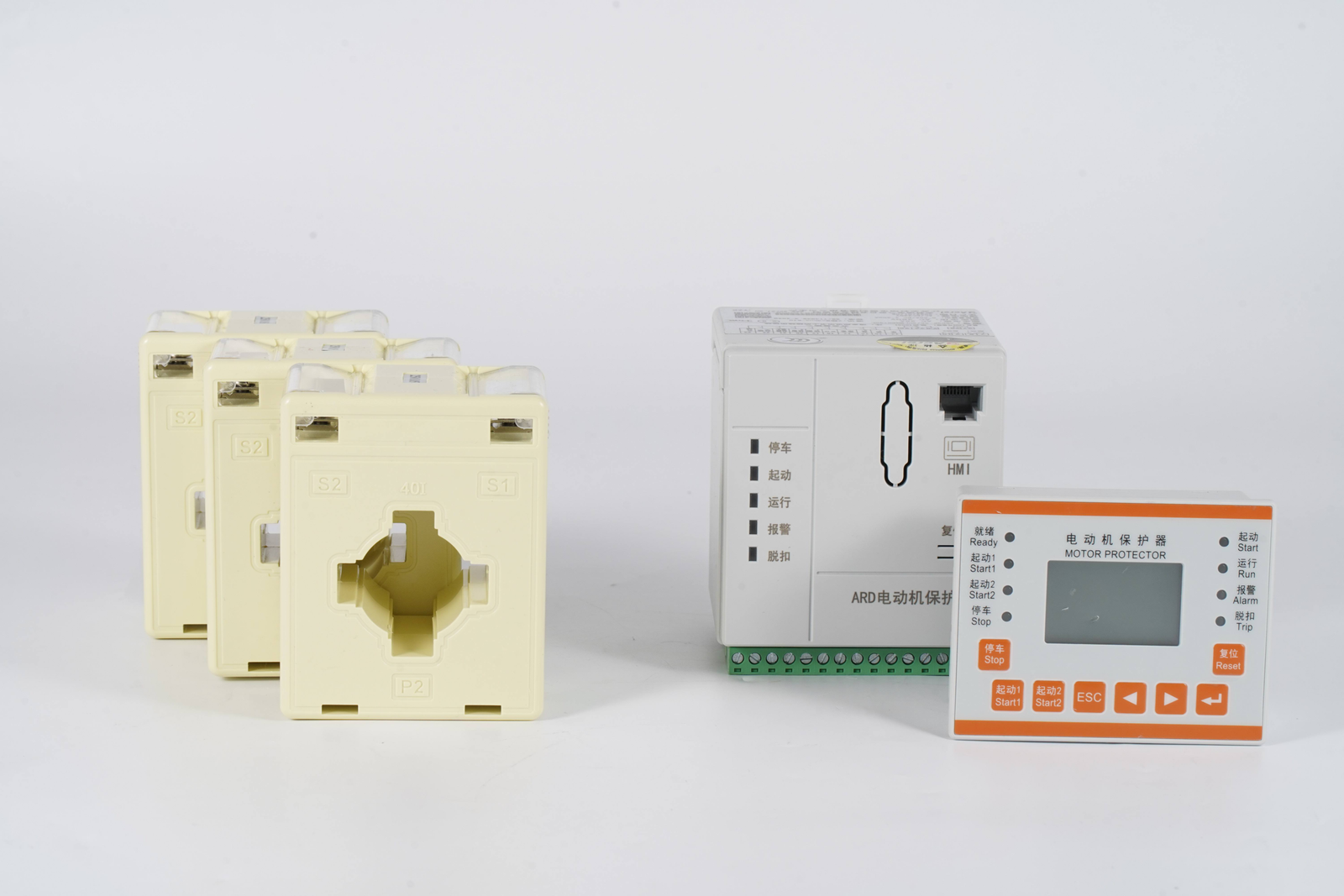

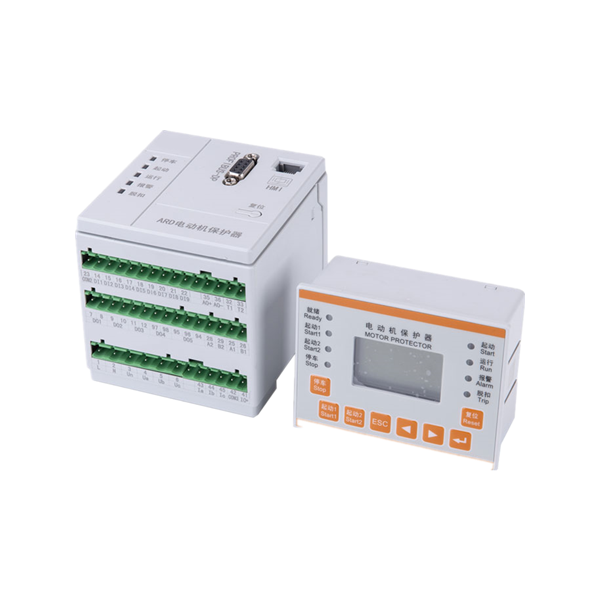

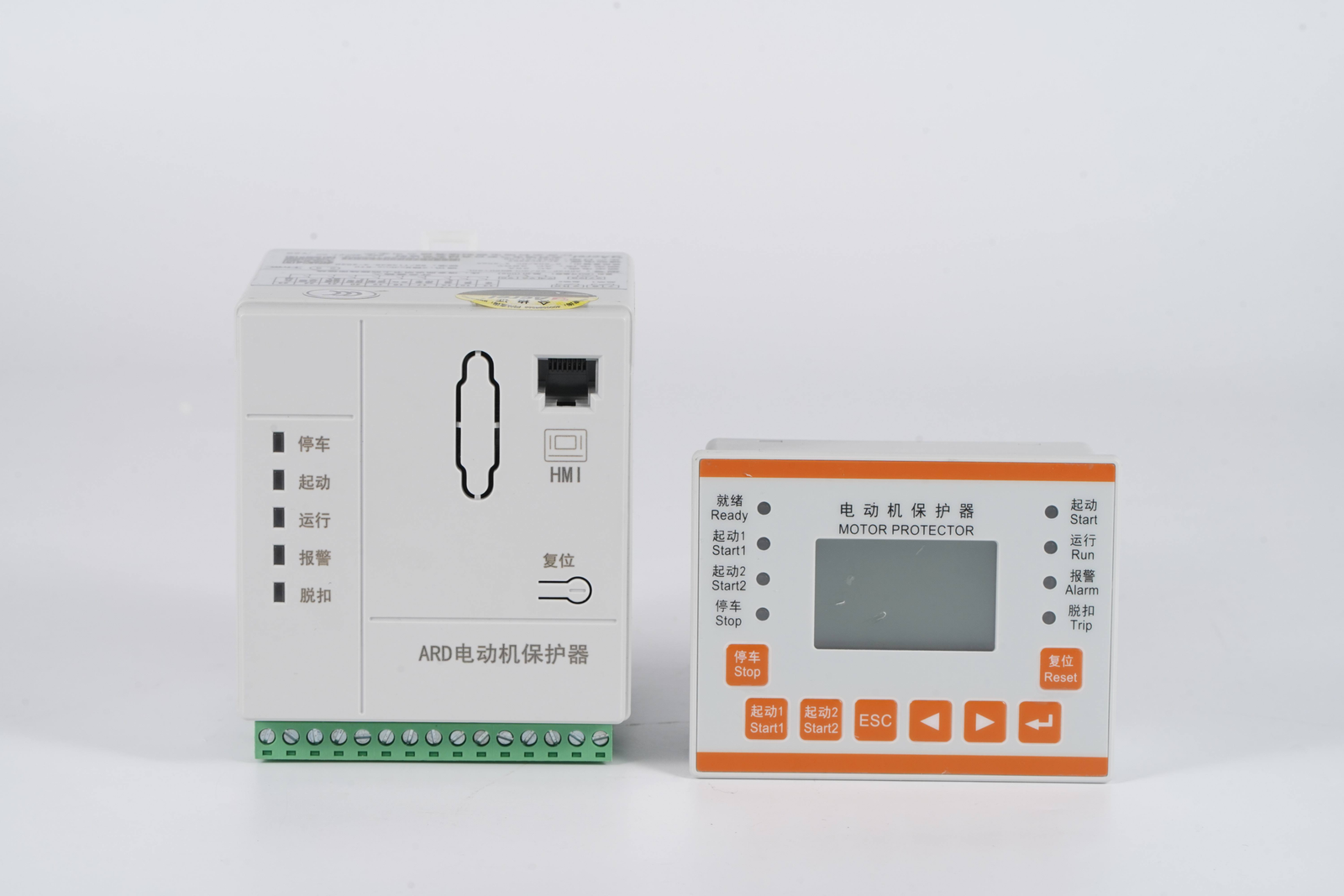

| Product name | smart motor protector | Type | Multifunction Relay |
| Contact Rating | 5A 220VAC/28VDC | auxiliary power supply | AC85-265V/DC100-300V |
| working voltage | AC220V / 380V / 660V, 50Hz / 60Hz | Communication | MODBUS RTU communication |
| Working temperature | -10~55 |
| Selling Units | Single item |
|---|
